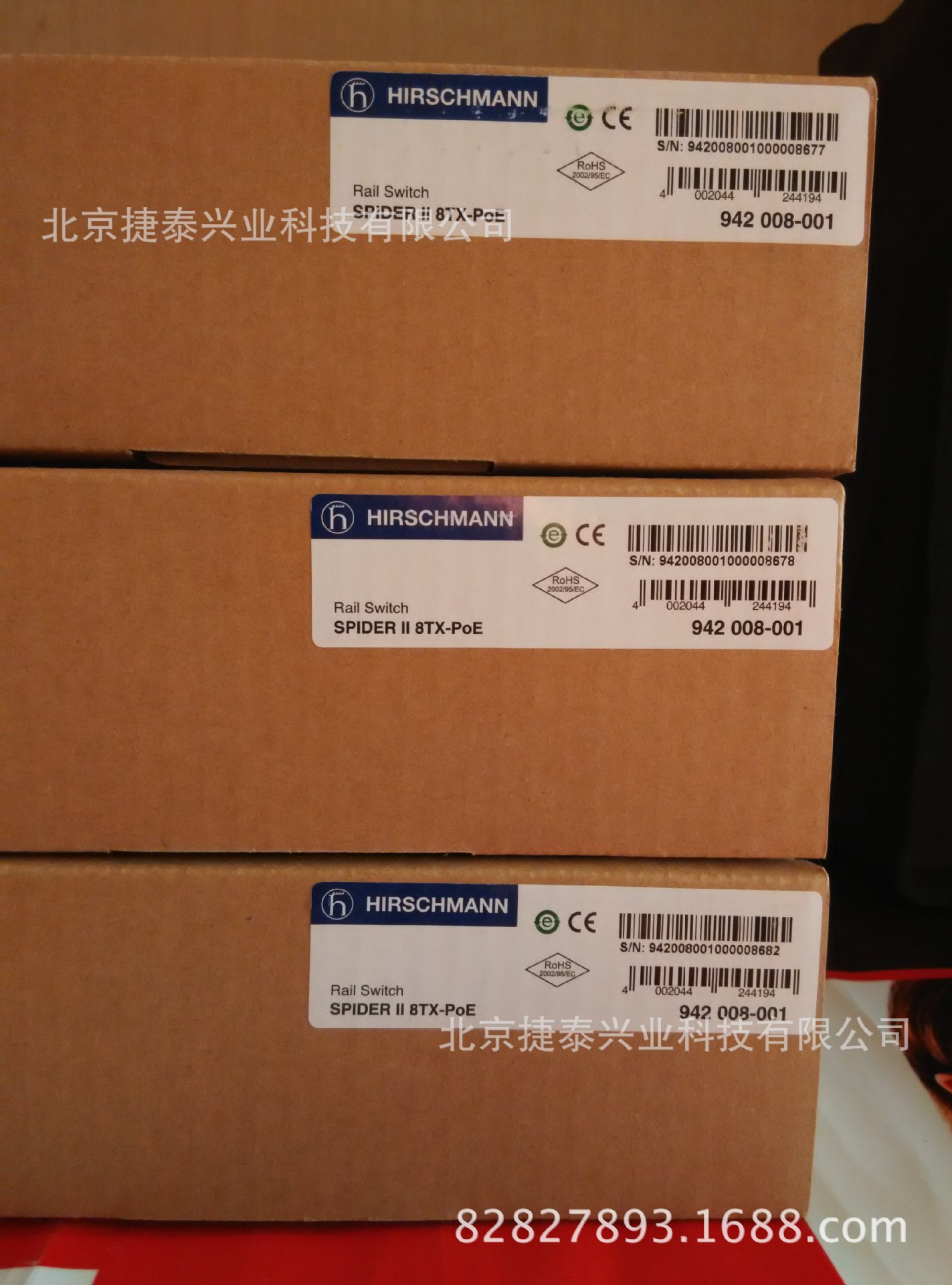

赫斯曼交换机SPIDER II 8TX PoE
产品编号：2016526225314
产品价格：¥
产品描述：赫斯曼交换机SPIDER II 8TX PoE
|
|
|
产品介绍
购买电话：13581789724 王海旭 010-82827893/39-8004 详情请登陆:www.hesimann.com
购买电话：13581789724 王海旭 010-82827893/39-8004 详情请登陆：www.hesimann.com
Product description
购买电话：13581789724 王海旭 010-82827893/39-8004 详情请登陆：www.hesimann.com
| Description |
Entry Level Industrial Ethernet Rail-Switch, store and forward switching mode, Ethernet (10 Mbit/s) and Fast-Ethernet (100 Mbit/s) |
| Port type and quantity |
8 x 10/100BASE-TX, 4 x PoE according to IEEE802.3af, TP-cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity |
| Type |
SPIDER II 8TX PoE |
| Order No. |
942 008-001 |
More Interfaces
| Power supply/signaling contact |
1 plug-in terminal block, 3-pin, no signaling contact |
Network size - length of cable
| Twisted pair (TP) |
0 - 100 m |
| Multimode fiber (MM) 50/125 µm |
n/a |
| Multimode fiber (MM) 62.5/125 µm |
n.v. |
| Single mode fiber (SM) 9/125 µm |
n/a |
| Single mode fiber (LH) 9/125 µm (long haul transceiver) |
n/a |
Network size - cascadibility
| Line - / star topology |
Any |
Power requirements
| Operating voltage |
18 V DC - 32 V DC |
| Current consumption at 24 V DC |
0,189 A (without PoE) / 3,12 A (with PoE) |
| Power consumption |
max. 75 Watt |
| Power output in Btu (IT) h |
234.2 |
Service
| Diagnostics |
LEDs (power, link status, data, data rate) |
Redundancy
| Redundancy functions |
n.v. |
Ambient conditions
| Operating temperature |
-10 ºC to +60 ºC |
| Storage/transport temperature |
-20 ºC to +70 ºC |
| Relative humidity (non-condensing) |
10% to 95% |
| MTBF |
479,015 hrs (Telcordia SR-332) |
Mechanical construction
| Dimensions (W x H x D) |
35 mm x 138 mm x 121 mm |
| Mounting |
DIN Rail 35 mm |
| Weight |
560 g |
| Protection class |
IP 30 |
Mechanical stability
| IEC 60068-2-27 shock |
15 g, 11 ms duration, 18 shocks |
| IEC 60068-2-6 vibration |
3,5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.;
1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min. |
EMC interference immunity
| EN 61000-4-2 electrostatic discharge (ESD) |
6 kV contact discharge, 8 kV air discharge |
| EN 61000-4-3 electromagnetic field |
10 V/m (80 - 1000 MHz) |
| EN 61000-4-4 fast transients (burst) |
2 kV power line, 4 kV data line |
| EN 61000-4-5 surge voltage |
power line: 2 kV (linie/earth), 1 kV (linie/line), 2 kV data line |
| EN 61000-4-6 conducted immunity |
10 V (150 kHz - 80 kHz) |
EMC emitted immunity
| FCC CFR47 Part 15 |
FCC CFR47 Part 15 Class A |
| EN 55022 |
EN 55022 Class A |
Approvals
| Safety of industrial control equipment |
cUL 508 |
| EMV regulations for assembly in vehicles |
n/a |
| Employment in vehicles |
E1 |
Scope of delivery and accessories
| Scope of delivery |
Device, terminal block, operating manual |
| Accessories to order separately |
Rail power supply RPS 80 EEC or RPS 120 EEC, 19" installation frame |
|
