NISE 105/105A3无风扇工业计算机
产品编号：201531812513
产品价格：¥
产品描述：NISE 105/105A3无风扇工业计算机采用最新一代 Intel® Atom™ E3826处理器
|
|
|
产品介绍
购买电话：13581789724 王海旭 010-82827893/39-8004 详情请登陆：www.getck.com.cn
购买电话：13581789724 王海旭 010-82827893/39-8004 详情请登陆：www.getck.com.cn
购买电话：13581789724 王海旭 010-82827893/39-8004 详情请登陆：www.getck.com.cn采用最新一代 Intel® Atom™ E3826处理器 (代号 "Bay Trail-I"), NISE 105提供出色性能，不仅体现在运算性上还体现在图形性能上，并提出了智能和工业运算解决方案的新机会。NISE 105 支持达 4G DDR3L 内存和多存储设备可选，如CFast, HDD 和 SSD. NISE 105也是NISE 100系列产品的第一个支持 -20到 70度宽温和9-30VDC 宽压的产品.此外，NISE 105无线缆连接，使NISE 105 持续稳定运行在温度和振动的严苛环境。NISE 105 拥有高集成性能，可选 Mini-PCIe模块和 4 x COM 接口，适用多种实时智能系统，如工厂自动化应用(可选PROFIBUS, ProfiNET, DeviceNET, EtherCAT, Ethernet IP 主站模块), 网络应用 (可选 GbE LAN, Wi-Fi, 3.5G/4G LTE 模块) 和通讯应用 (可选 GPIO, RS232/422/485)。 NISE 105 是M2M 智能系统和工厂自动化平台的首选。
| CPU |
Onboard Intel® Atom™ processor E3826 Dual Core, 1.46GHz Support Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs |
| 内存 |
1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 4GB RAM max., un-buffered and non-ECC |
| 显示选项 |
Dual Independent Display
- HDMI and DVI-D
- HDMI and VGA (via DVI-I to VGA converter) |

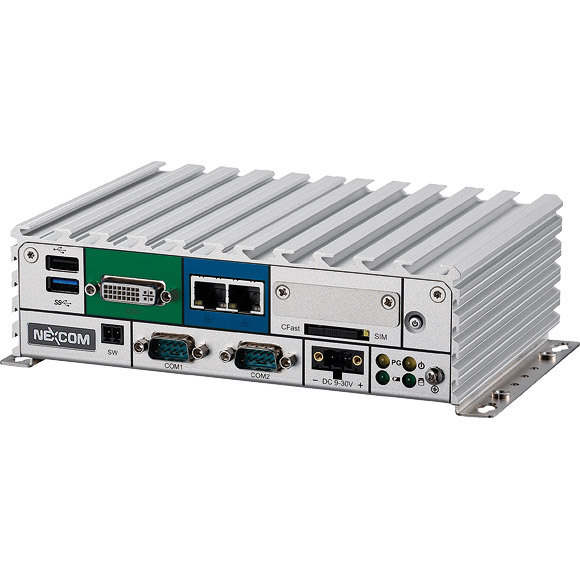

| 前置I/O界面 |
ATX power on/off switch 1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs 1 x External CFast socket 1 x SIM Card holder 2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE 1 x DVI-I Display Output 1 x USB3.0 (900mA per each) 1 x USB2.0 (500mA per each) 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control
- Jumper-free setting on RS232/422/485
- Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only) 1 x Remote Power ON/OFF Switch 1 x 2-pin DC input, support +9 to 30VDC input |

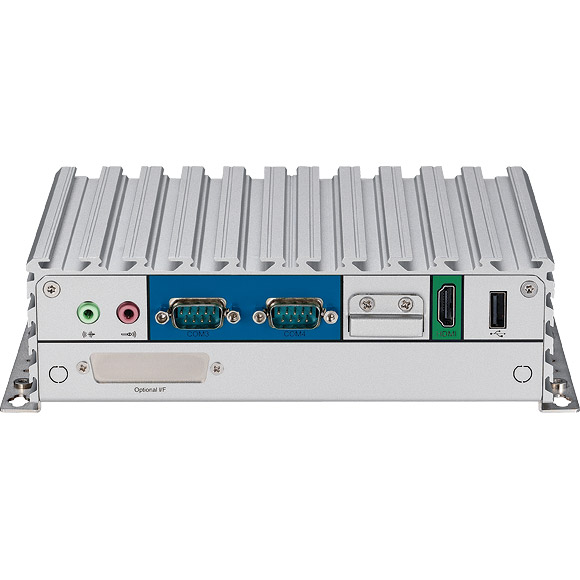

| 后置I/O界面 |
1 x USB2.0 1 x HDMI 1 x RTC Battery 2 x DB9 for COM3 & COM4
- NISE 105 : support RS232 only
- NISE 105A: support RS232/422/485 with auto flow control 1 x Mic-in & 1 x Line-out 2 x Antenna Holes for optional Wi-Fi/3.5G antenna 1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G/Hilscher Automation module output |
| I/O界面 - 内部 |
4 x GPI and 4 GPO (5V, TTL Type) |
| 存储设备 |
1 x CFast (SATA3.0) 1 x 2.5" HDD (SATA2.0) 1Mb NVRAM(on NISE105A Only) |
| 扩展槽 |
1 x Mini-PCIe socket for optional Wi-Fi/3.5G/Hilscher automation modules |
| 电源需求 |
Power input: +9VDC to +30VDC 1 x optional 24V, 60W power adapter |
| 操作系统支持 |
Windows 8, 32bit/64bit Windows Embedded Standard 8, 32bit/64bit Windows 7, 32bit/64bit Windows Embedded Standard 7, 32bit/64bit Windows Embedded Compact 7, 32bit Linux Kernel version 3.8.0 |
| 尺寸 |
185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket |
| 构造 |
Aluminum and Metal Chassis with fanless design |
| 运行环境 |
Operating Temperature:
Ambient with air flow: -20°C to 70°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage Temperature: -30°C to 85°C Relative Humidity: 10% to 95% (non-Condensing) Shock Protection:
- HDD: 20G, half sine, 11ms, IEC60068-27
- CFast: 50G, half sine, 11ms, IEC60068-27 Vibration Protection w/HDD Condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 Vibration Protection w/CFast & SSD Condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| 认证 |
CE FCC Class A |
|
