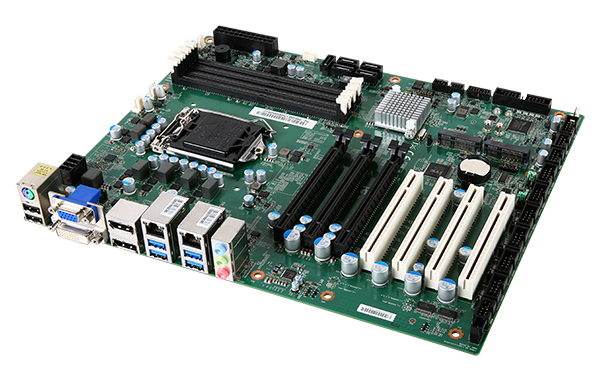

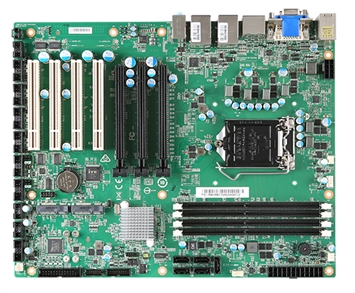

Intel H110/Q170/C236 ATX Board w/VGA/DVI-D/2DP/2GbE/6COM/12USB/HDA
Intel 6th Skylake Core i3/i5/i7/Pentium/Celeron/Xeon E3-12XX V5 Series Processor
· Intel H110/Q170/C236 PCH
· 4(2) x 288pin UDIMMs DDR4 2133MHz up to 64GB(32GB)
· 2 x Intel PCI-E Gigabit LAN Controller
· 6 x COM Port , 4(5) x SATA3.0
· 4(6) x USB3.0, 4(6) x USB2.0
· 2 x Mini PCIe,1 x PCIe 16X,2(1) x PCIe 4X,4 x PCI
· Support RAID0/1/5/10(Q170/C236)
· Support 2 or 3 Independent display
|
Processor
|
CPU
|
H110/Q170: 6th Intel Skylake Core i3/i5/i7/Pentium/Celeron Processor
C236: 6th Intel Xeon E3-12XX V5, Core i3/Pentium/Celeron Processor
|
|
Socket
|
LGA1151
|
|
Chipset
|
Intel H110/Q170/C236 PCH
|
|
BIOS
|
AMI UEFI
|
|
DRAM
|
Technology
|
DDR4-2133MHz
|
|
Capacity
|
H110:32GB, C236/Q170:64GB
|
|
Socket
|
2 (4) x 288-Pin UDIMMs
|
|
Display
|
Graphics
|
Intel HD Graphics with
DX12 & OpenCL 2.X
|
|
Graphics Memory
|
Share System memory up to 1.7GB SDRAM
|
|
VGA
|
1, Up to 1920 x 1080
|
|
DVI-D
|
1, Up to 1920 x 1200
|
|
DP
|
2, Up to 4096 x 2304
|
|
Multi-Display
|
2 Independent display (H110)
3 Independent display (Q170/C236)
|
|
LAN
|
2 x Intel GbE Controller (i210-AT+i219-LM)
|
|
Audio
|
Realtek ALC887 w/Line-Out & Mic/Line-in
|
|
Watchdog
|
Software Programmable Support 1~255s System Reset
|
|
Storage
|
SATA
|
Q170/C236: 5 x SATA3.0
H110: 4 x SATA3.0
|
|
mSATA
|
1
|
|
RAID
|
RAID0/1/5/10 (Q170/C236)
|
|
I/O
|
Serial
|
6 x COM (COM1~2:RS232/422/485,0V/5V/12V)
(COM3~6: RS232, 0V/5V/12V)
|
|
Parallel
|
1
|
|
USB
|
Q170/C236: 6 xUSB3.0 + 6 xUSB2.0
H110: 4 xUSB3.0 + 4xUSB2.0
|
|
GPIO
|
4 x In , 4xOut
|
|
PS/2
|
Yes
|
|

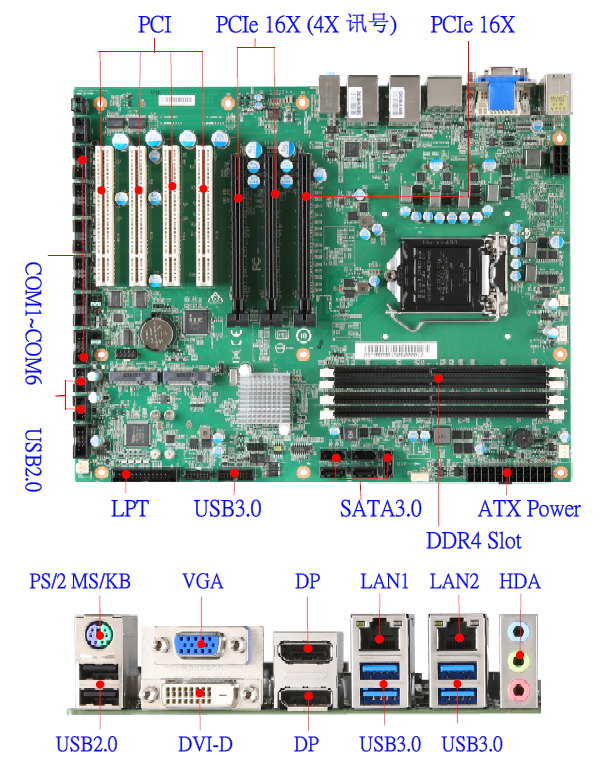

Expansion
Slot
|
PCIe x16
|
1
|
|
PCIe 4X
|
2 (Q170/C236) , 1 (H110)
|
|
PCI
|
4 (Ver: 2.3)
|
|
Mini PCIe
|
2 (One share with mSATA)
|
|
Power
|
Type
|
ATX Power
|
|
Form Factor
|
305mm x 244mm (ATX)
|
|
Environment
|
Operating Temp&Humidty
|
-10~60℃
/10~90%,non-condensing
|
|
Storage
Temp&Humidty
|
-20~80℃
/10~90%,non-condensing
|
|
Certification
|
EMC
|
CE / FCC
|
Model Description

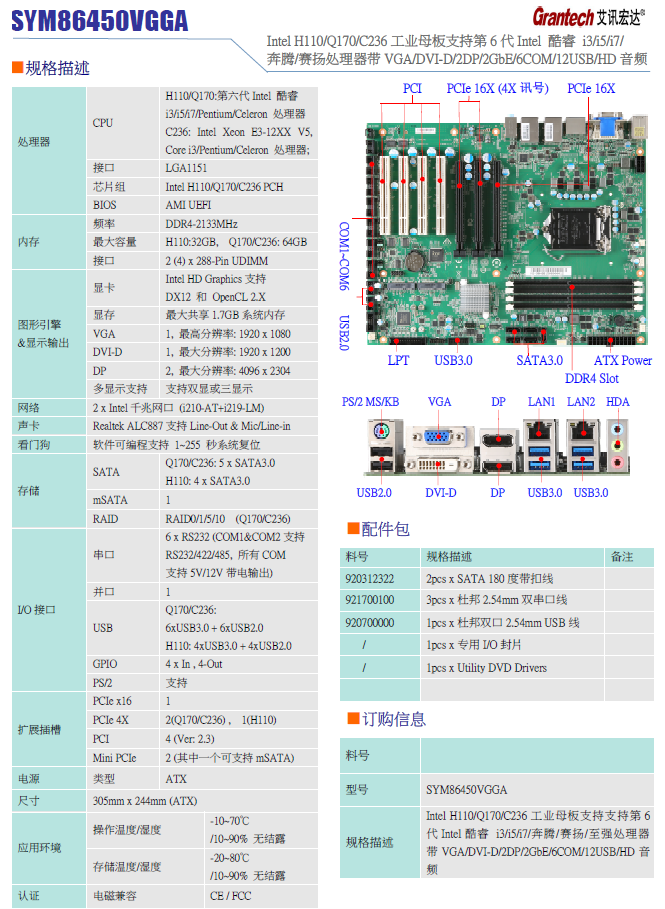

SYM86450VGGA Intel H110/Q170/C236 Industry ATX Board w/VGA/DVI-D/2DP/2GbE/6COM/12USB/HDA
