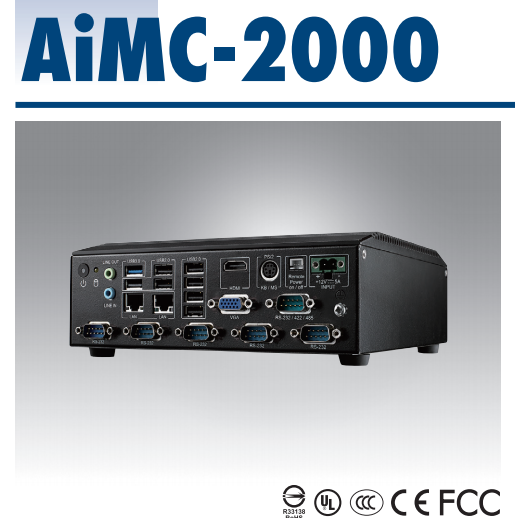

AIMC-2000

•

•


• Front Access Fan-less Micro Computer, Intel® Celeron® Quad Core J1900/N2807 SoC with VGA/HDMI, 6 COMs, 8 USBs

Intel Baytrail平台

• Intel Celeron 四核J1900/N2807 SoC
• -无风扇设计
• 紧凑型&丰富I/O配置
• -1个内置2.5"SATA HDD硬盘和1个mSATA存储插槽
• -VGA,HAMI.2个Gbe LAN,7个USB 2.0,，1个USB 3.0,5个RS-232,1个RS-232/422/485
• -1个mini PCIe扩展插槽，支持全长模块
• -音频输入，输出支持6W攻放
• 节能
• -DC 12V电源输入

• 规格

  AIMC-2000J-HDA1E

  Certification

  EMC

  Safety Certifications

  CE, FCC, CCC

  UL, CB, CCC, BSMI

  Disk Drive Bay

  2.5" Internal

  1

  Environment

  Operating Shock

  Operating-Temperature

  Non-Operating Vibration

  Non-Operational Temperature

  Operating Vibration

  10G, half sine wave, 11 ms duration

  0 ~ 40°C (HDD) -20~60°C (mSATA)

  2 G

  -40~ 85° C and 60° C @ 95% RH Non-Condensing

  1Grms (with HDD), 3Grms (with SSD)

  Miscellaneous

  Control

  LED Indicators

  Power on/off switch

  HDD

  Physical Characteristics

  Dimensions (W x H x D)

  Weight

  200 x 69 x200 mm

  2.5 kg

  Display

  Controller

  Intel HD graphics Integrated

  Ethernet

  Connector

  Controller

  Speed

  2 x RJ45

  LAN1: Realtek RTL8111E, LAN2: Realtek RTL8111E

  10/100/1000 Mbps

  Expansion Interface

  Mini PCIe

  1 x internal Mini PCIe (Full-Size)

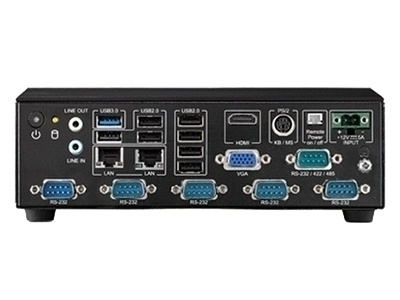

  Front I/O Interface

  Audio

  COM

  Display

  LAN

  PS/2

  USB2.0

  USB3.0

  Line-in, Line-out

  6

  1 VGA + 1 HDMI

  2

  1

  7

  1

  Memory

  Capacity

  Socket

  Technology

  Up to 8 GB

  2 x 204-pin SODIMM

  Dual Channel DDR3 1066/1333 MHz (Non ECC)

  Processor System

  BIOS

  Frequency

  CPU

  Core Number

  AMI SPI 64 Mbit

  2.0 GHz

  Intel® Celeron™ J1900

  4

  Form Factor

  Form Factor

  Compact



•
