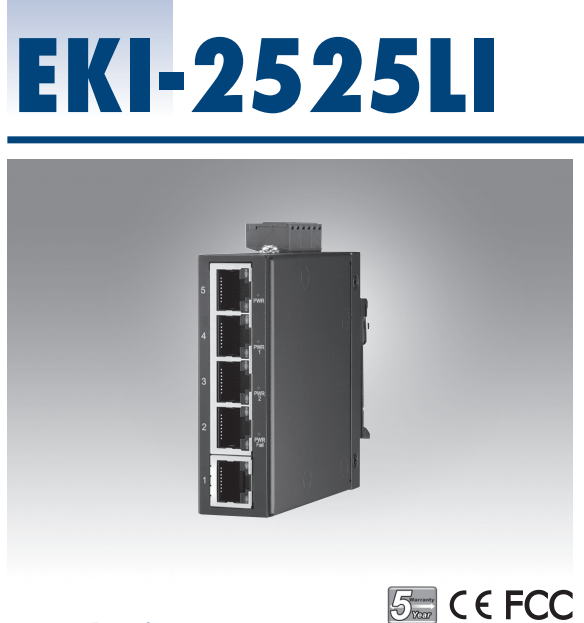

EKI-2525LI

5口百兆紧凑型非网管工业以太网交换机

• 提供5个自适应快速以太网口
• 支持10/100 Mbps 自适应
• 结构紧凑，支持 导轨安装/壁挂式安装, IP40等级金属外壳
• 支持12 ~ 48 VDC 冗余电源输入加一个直流电源插口和继电器报警
• 宽工作温度 -40 to 75 °C
• EKI-2525LI 提供12 ~ 48 VDC 冗余电源输入设计加上一个直流电源插孔，以及电源极性反接保护。EKI- 2525LI的每个端口都有连接状态传输速度及冲突状态的指示灯。在电源发生故障时，设备将会使用继电器输出，LED指示灯亮并报警通知管理员。工程师可方便地通过指示灯对硬件进行快速的检查及故障诊断。 EKI-2525LI具备紧凑的结构设计，可安装在狭窄空间，同时IP40等级金属外壳，能够保证在恶劣的工业环境下正常工作。

•


• 规格

  Part Number

  EKI-2525LI-AE

  * Port Configuration

  Description

  Total Port Number

  5 x 10/100BaseT(X)

  5

  Certification

  EMI

  EMS

  EN 55022/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

  EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8

  Environment

  Temperature (Min. Operating)

  Temperature (Max. Operating)

  Temperature (Operating Range)

  Temperature (Storage Range)

  -40°C (-40°F)

  75°C (167°F)

  -40 ~ 75°C (-40 ~ 167°F)

  -40 ~ 85°C (-40 ~ 185°F)

  Ethernet Communication

  Fiber Port Number

  Fiber Port Interface

  Fiber Port Connector Type

  Fiber Transmission Distance

  Fiber Transmission Speed

  RJ45 Port Number

  RJ45 Port Connector Type

  RJ45 Transmission Distance

  RJ45 Transmission Speed



  5

  RJ45

  100 m

  10/100 Mbps

  Mechanism

  Mounting (DIN-rail)

  Mounting (Stack)

  Mounting (Panel)

  Mounting (Wall)

  Mounting (Rack Mount)

  Mounting (Pole Mount)

  Dimensions (W x H x D)

  Enclosure (Metal)

  Enclosure (Plastic)

  IP Rating

  Weight

  Yes

  -

  -

  Yes

  -

  -

  30 x 120 x 95 mm (1.18'' x 4.72'' x 3.74)

  Yes

  -

  IP40

  500g

  PoE Information

  PoE Port Number

  PoE Budget

  PoE Output

  Support PoE



  No

  Power

  Power Connector Type

  Power Consumption

  Power Input (AC)

  Power Input (DC)

  Power Input (PoE)

  Power Input (Battery)

  Power Operating Current

  Redundant Dual Inputs

  6-pin removable screw terminal ((power & relay)

  3.1W

  -

  12 ~ 48 VDC

  -

  -

  0.23A @ 24V

  Yes

  Product Category

  Layer 2 - Unmanaged Switch

  Yes

  Switch Properties

  Jumbo Frame

  MAC Table Size

  Packet Buffer Size

  Switch Fabric Speed

  9,216 bytes

  2K

  448Kbit (0.4375Mbits)

  1.0Gbps

  Warranty

  Warranty Period

  5 years

  Protection

  Overload Current

  Reverse Polarity

  Present

  Present



•
