EKI-2728SI 6GE+2G 单模非网管型交换机
Date:2020-5-18 23:05:18

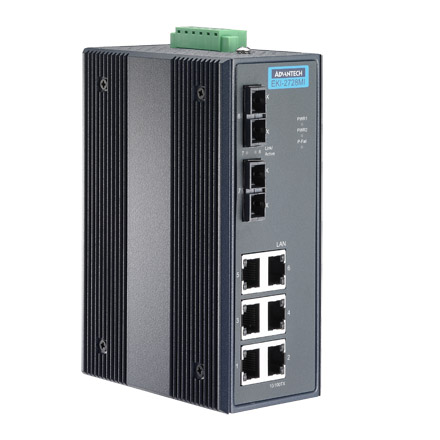

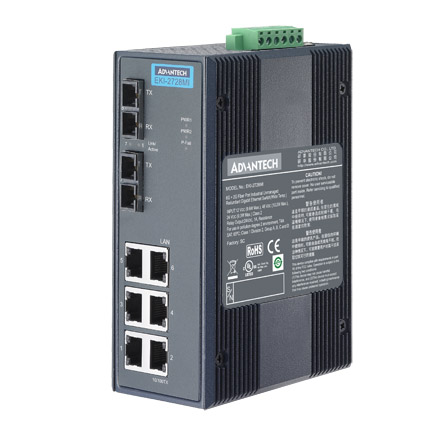

EKI-2728SI
6GE+2G Single-Mode Fiber Port Unmanaged Ethernet Switch, -40~75℃
  • Provides 6 x 10/100/1000 Mbps Ethernet port with RJ45 connector
  • Provides 2 x 1000 Mbps fiber port with SC type connector for 1000Base-SX/LX device
  • Supports MDI/MDI-X auto crossover
  • Supports Auto-Negotiation
  • Supports redundant 12 ~ 48 VDC and 24VAC power input
  • Provides flexible mounting: DIN-rail and Wall mount
  • Provides Link Fault Pass-through (LFP)
  • Jumbo Frame: 9216 bytes
  • EKI-2728M/2728S are cost effective unmanaged industrial Ethernet switch which supports Giga Ethernet. It supports Green Power requirement, furthermore, EKI-2728M/2728S also supports advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.
  • Part Number

    EKI-2728SI-AE

    * Port Configuration

    Description

    Total Port Number

    6 x 10/100/1000 RJ45 + 2 x 1000 Single-Mode SC Fiber

    8

    Certification

    EMI

    EMS

    Safety

    CE, FCC Class A

    EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

    -

    Environment

    Temperature (Min. Operating)

    Temperature (Max. Operating)

    Temperature (Operating Range)

    Temperature (Storage Range)

    -40°C (-40°F)

    75°C (167°F)

    -40 ~ 75°C (-40 ~ 167°F)

    - 40 ~ 85°C ( -40 ~ 185°F)

    Ethernet Communication

    Fiber Port Number

    Fiber Port Interface

    Fiber Port Connector Type

    Fiber Transmission Distance

    Fiber Transmission Speed

    RJ45 Port Number

    RJ45 Port Connector Type

    RJ45 Transmission Distance

    RJ45 Transmission Speed

    2

    Single-Mode

    SC Type

    UP to 10km

    1000 Mbps

    6

    RJ45

    100 m

    10/100/1000 Mbps

    Mechanism

    Mounting (DIN-rail)

    Mounting (Stack)

    Mounting (Panel)

    Mounting (Wall)

    Mounting (Rack Mount)

    Mounting (Pole Mount)

    Dimensions (W x H x D)

    Enclosure (Metal)

    Enclosure (Plastic)

    IP Rating

    Yes

    -

    -

    Yes

    -

    -

    59.6 x 152 x 105 mm (2.35" x 5.98" x 4.13")

    Yes

    -

    IP30

    PoE Information

    PoE Port Number

    PoE Budget

    PoE Output

    Support PoE

    -

    -

    -

    No

    Power

    Power Connector Type

    Power Consumption

    Power Input (AC)

    Power Input (DC)

    Power Input (PoE)

    Power Input (Battery)

    Power Operating Current

    Redundant Dual Inputs

    6-pin removable screw terminal ((power & relay)

    Max. 7 W

    24VAC

    12 ~ 48 VDC

    -

    -

    1A @24VDC

    Yes

    Product Category

    Layer 2 - Unmanaged Switch

    Yes

    Warranty

    Warranty Period

    5 years

    Protection

    Overload Current

    Reverse Polarity

    Present

    Present
