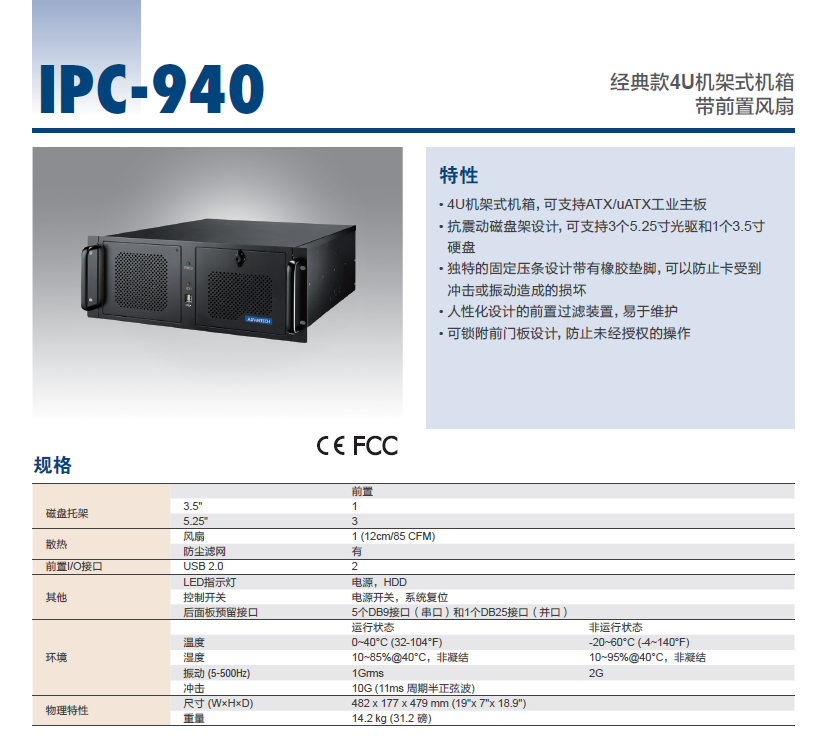

IPC-940/AIMB-701VG/I3 3320/I5 2400/I7 2600

经典款4U机架式机箱，带前置风扇

更多图片

4U机架式机箱，可支持ATX/uATX工业主板

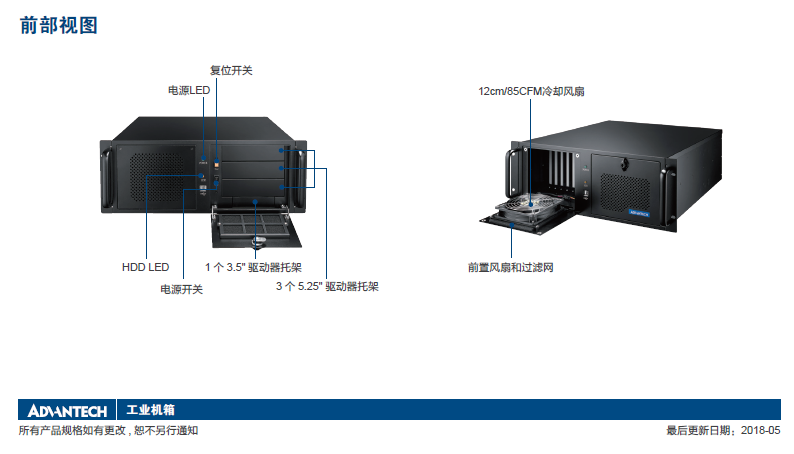

抗震动磁盘架设计，可支持3个5.25寸光驱和1个3.5寸硬盘

独特的固定压条设计带有橡胶垫脚，可以防止卡受到冲击或振动造成的损坏

人性化设计的前置过滤装置，易于维护

可锁附前门板设计，防止未经授权的操作

规格

Part Number

相关讯息

IPC-940MB-25Z

Disk Drive Bay

3.5" External Bay

5.25 External Bay

1

3

Cooling

Air Filter

Fan

Yes

1 (12 cm / 85 CFM)

Miscellaneous

Rear Panel

LED Indicators

Control

Five 9-pin D-Sub and one 25-pin D-Sub openings

Power, HDD activity

Power switch and system reset button

Environment

Operating-Temperature

Non-Operational Temperature

Operating Humidity

Non-Operating Humidity

Operating Vibration (5 ~ 500 Hz)

Non-Operating Vibration (5 ~ 500 Hz)

Shock

0 ~ 45

-20 ~ 60° C (-4 ~ 140° F)

10 ~ 85% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

1 Grms

2 G

10 G (with 11 ms duration, half sine wave)

Physical Characteristics

Weight

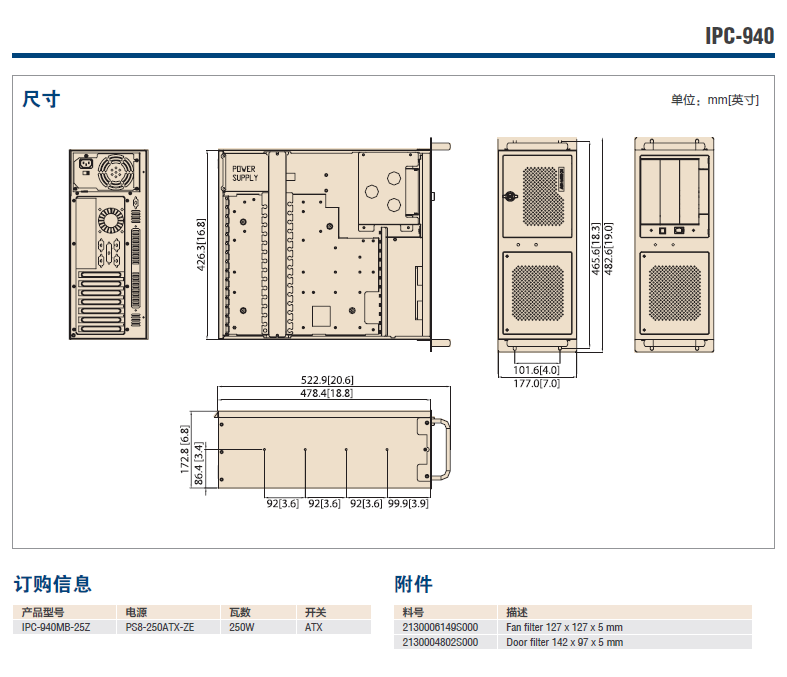

Dimensions (W x H x D)

14.5 kg ( 31.9 lb )

482 x 177 x 479 mm (19'' x 7'' x 18.9'')
